IMEX Ninja

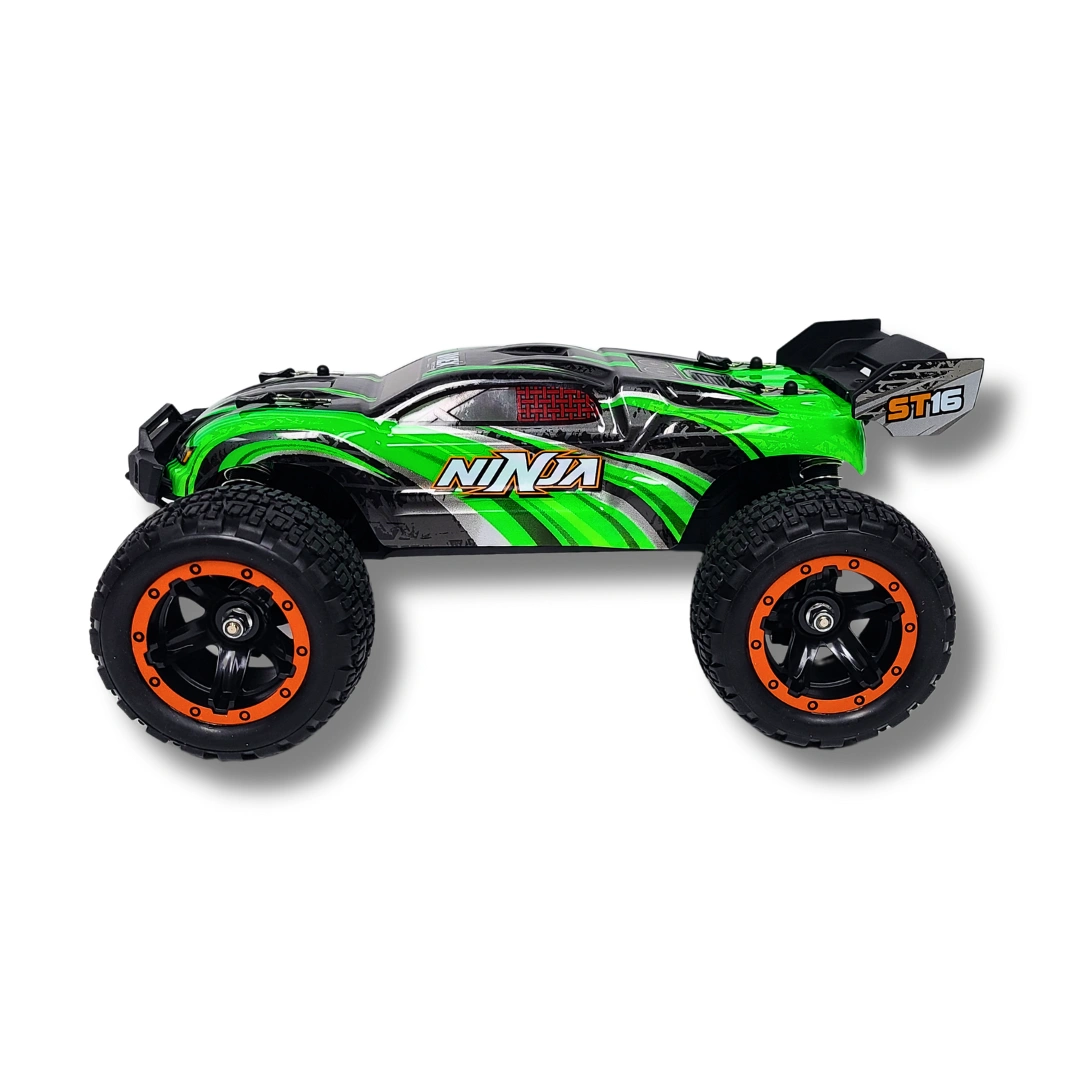

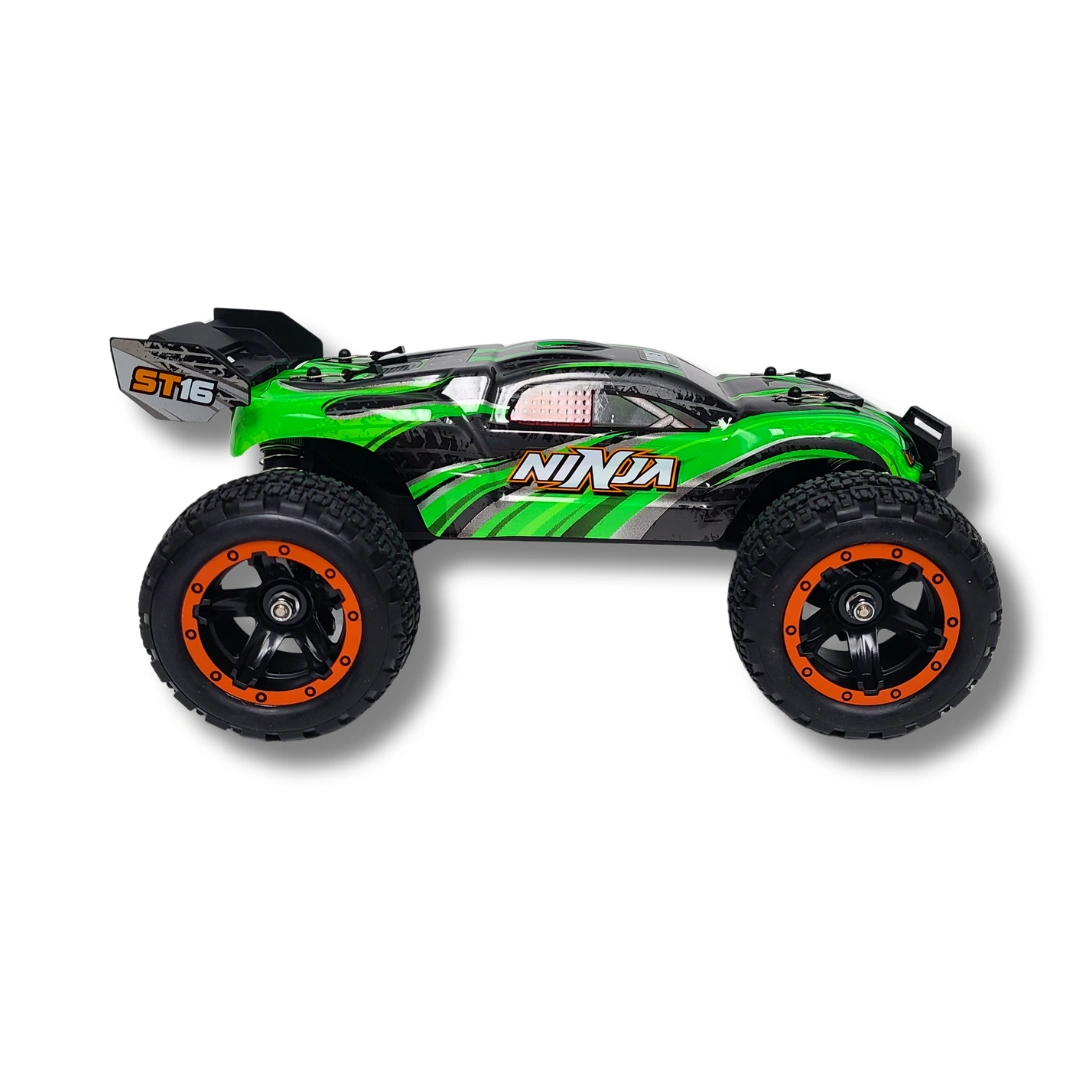

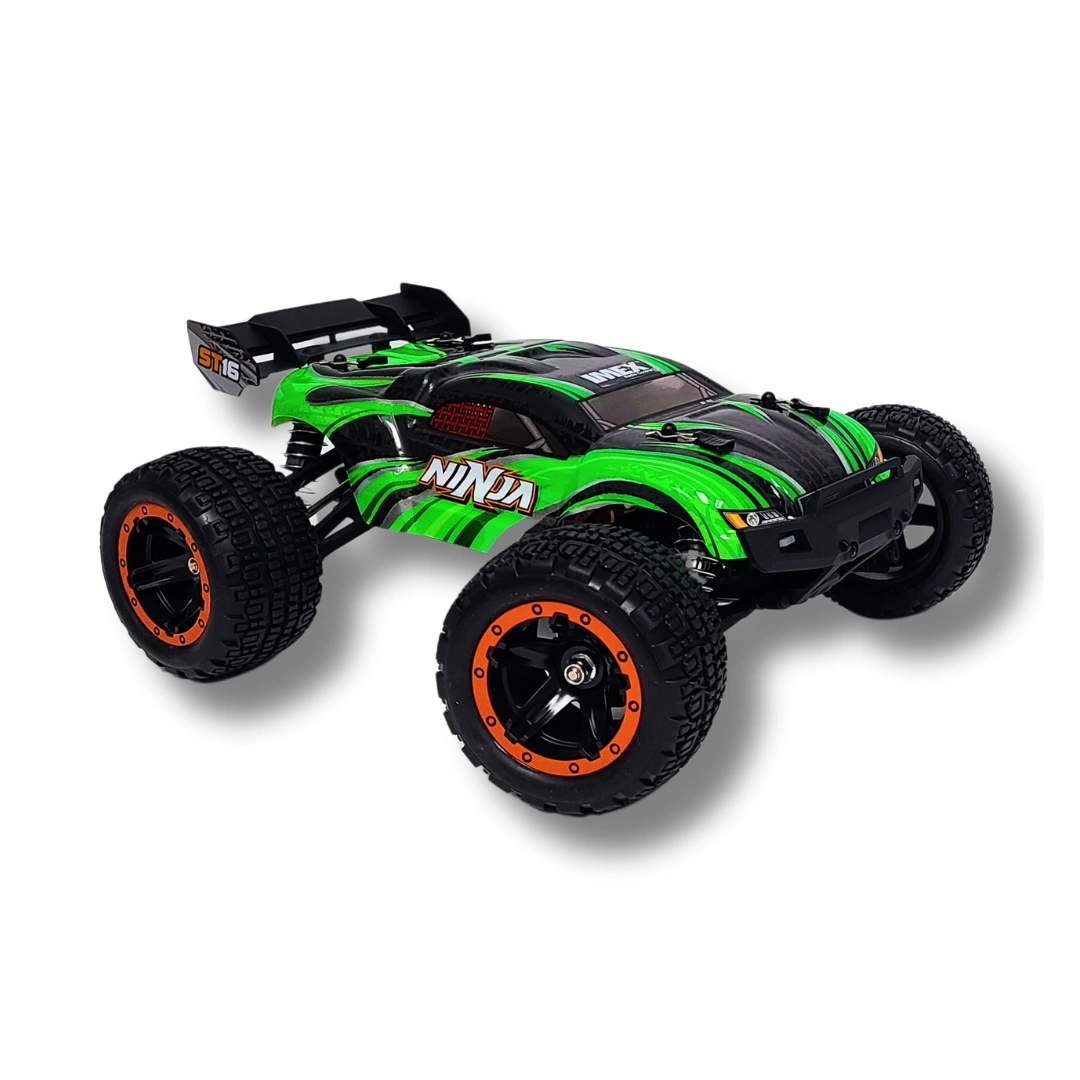

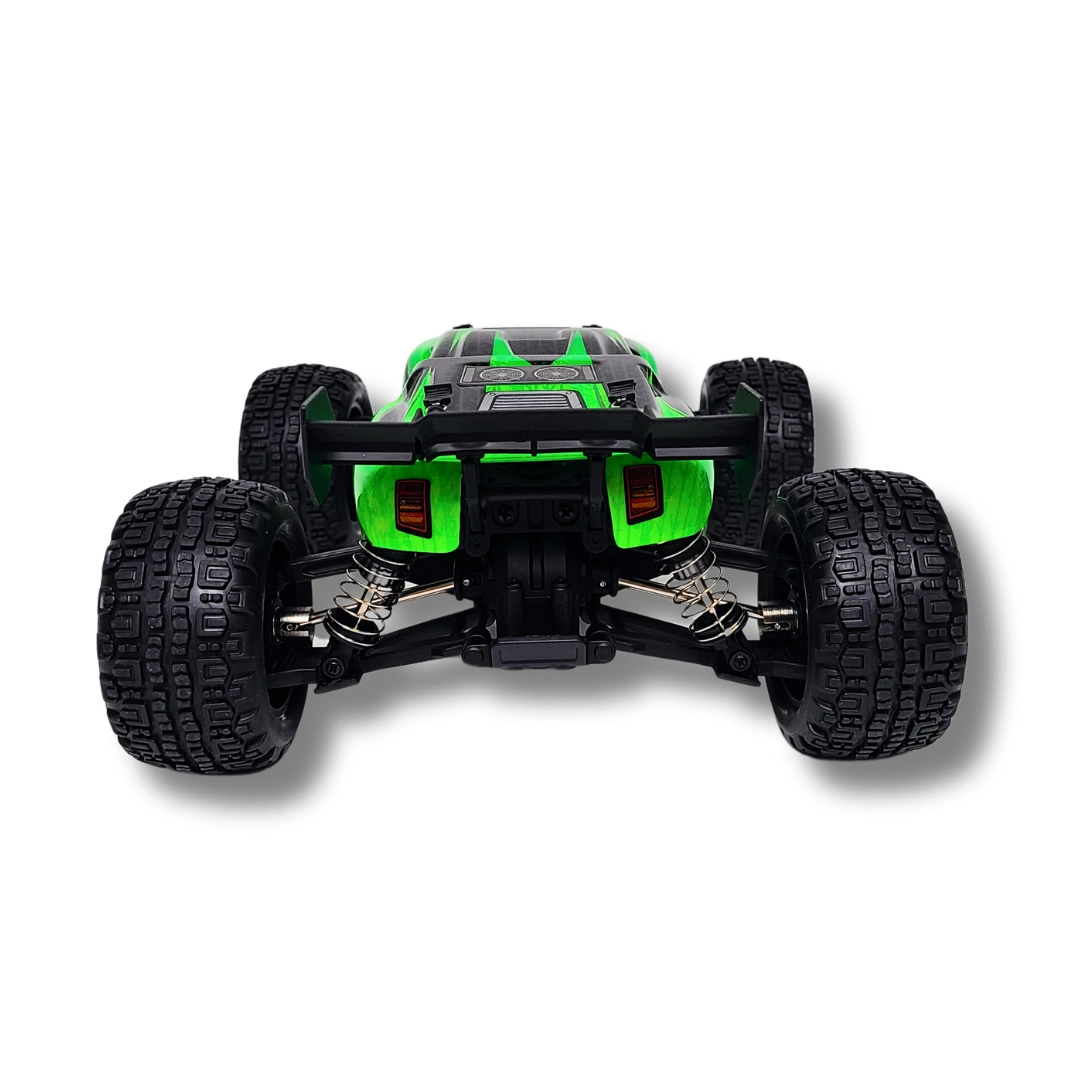

The IMEX Ninja is a super durable 1/16th scale 2.4GHz R/C Truggy that takes smaller 1/16 scale trucks to a whole new level. With a low center of gravity and plenty of power, this truck is incredibly stable on both on-road and off-road terrain.

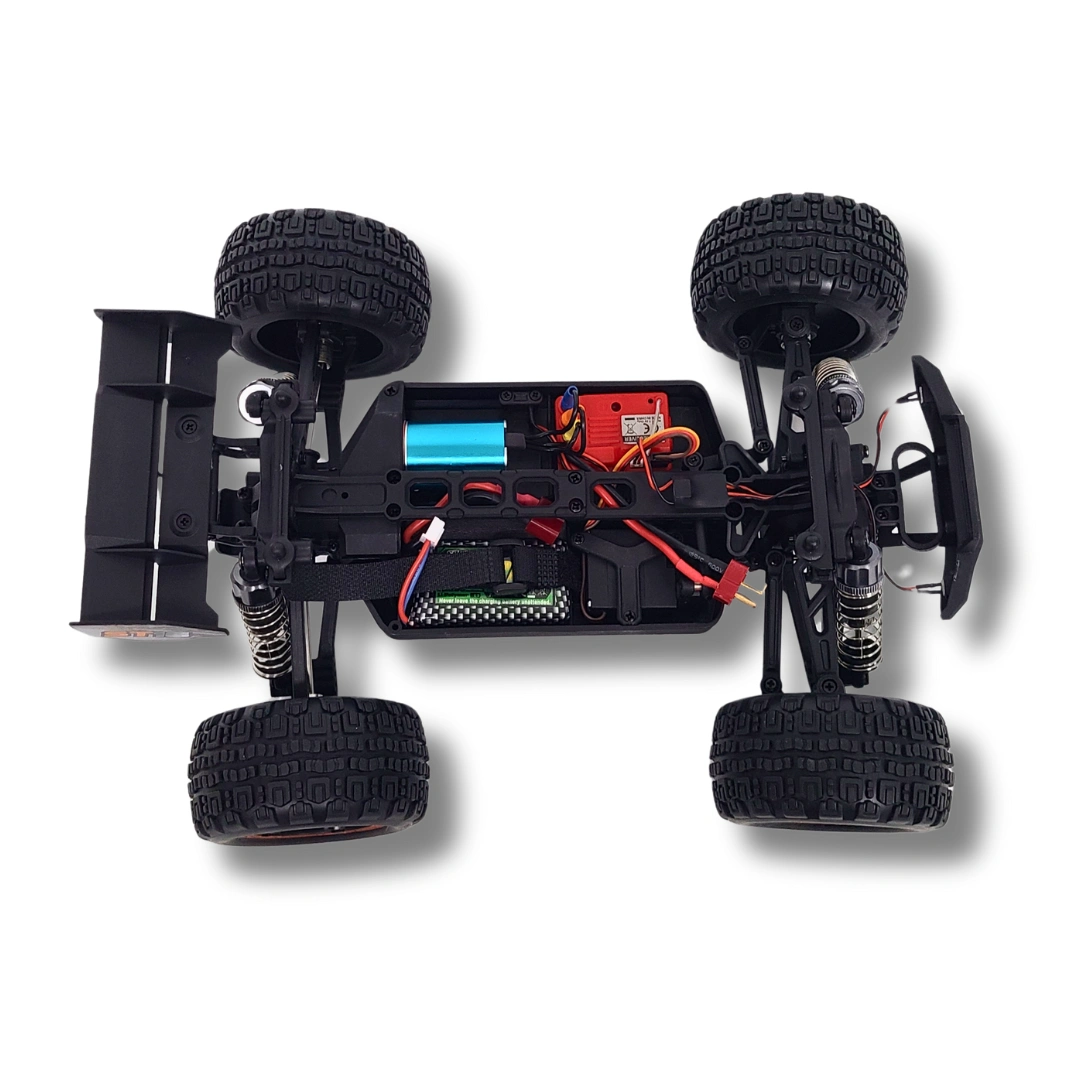

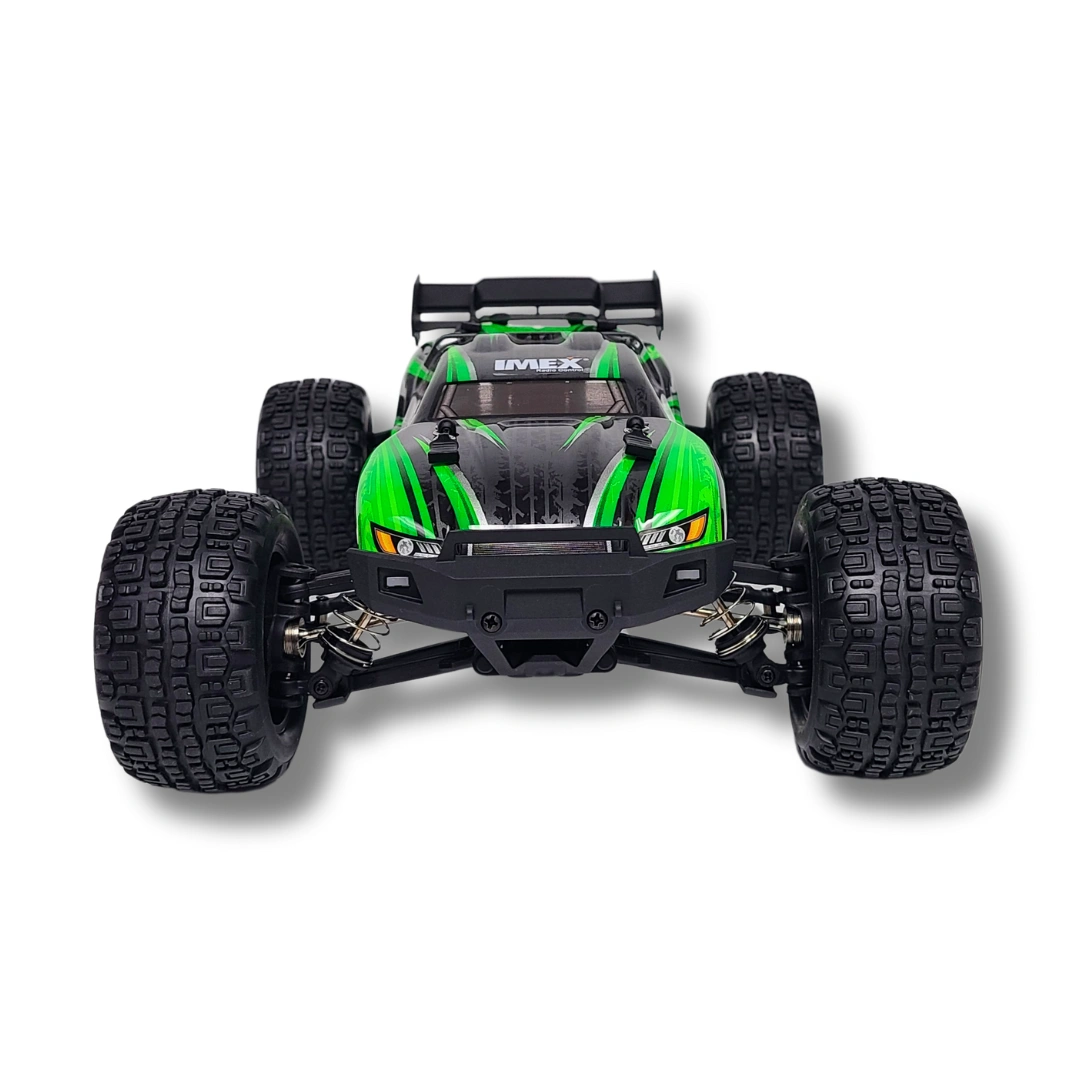

Designed for performance and durability, the Ninja features bright LED headlights, metal differentials, adjustable shocks, full ball bearings, and independent suspension in both the front and rear. This combination makes it a powerhouse on the track or the trails.
The Shogun, Ninja, and Katana share a common chassis, meaning many parts are interchangeable. Please check your manual before ordering to ensure compatibility. Both replacement and upgrade parts are available for the IMEX Ninja, all shipping from our Brooksville, FL warehouse.
Parts can be found HERE and the manual for the brushless Ninja is available HERE.
Specifications:
| Specification | Details |
| Scale | 1/16 |
| Drivetrain | 4WD |
| Max Speed | Approximately 30 mph |
| Size (LxWxH) | 10.6 x 8.5 x 5.1” |
| Wheelbase | 6.9” |

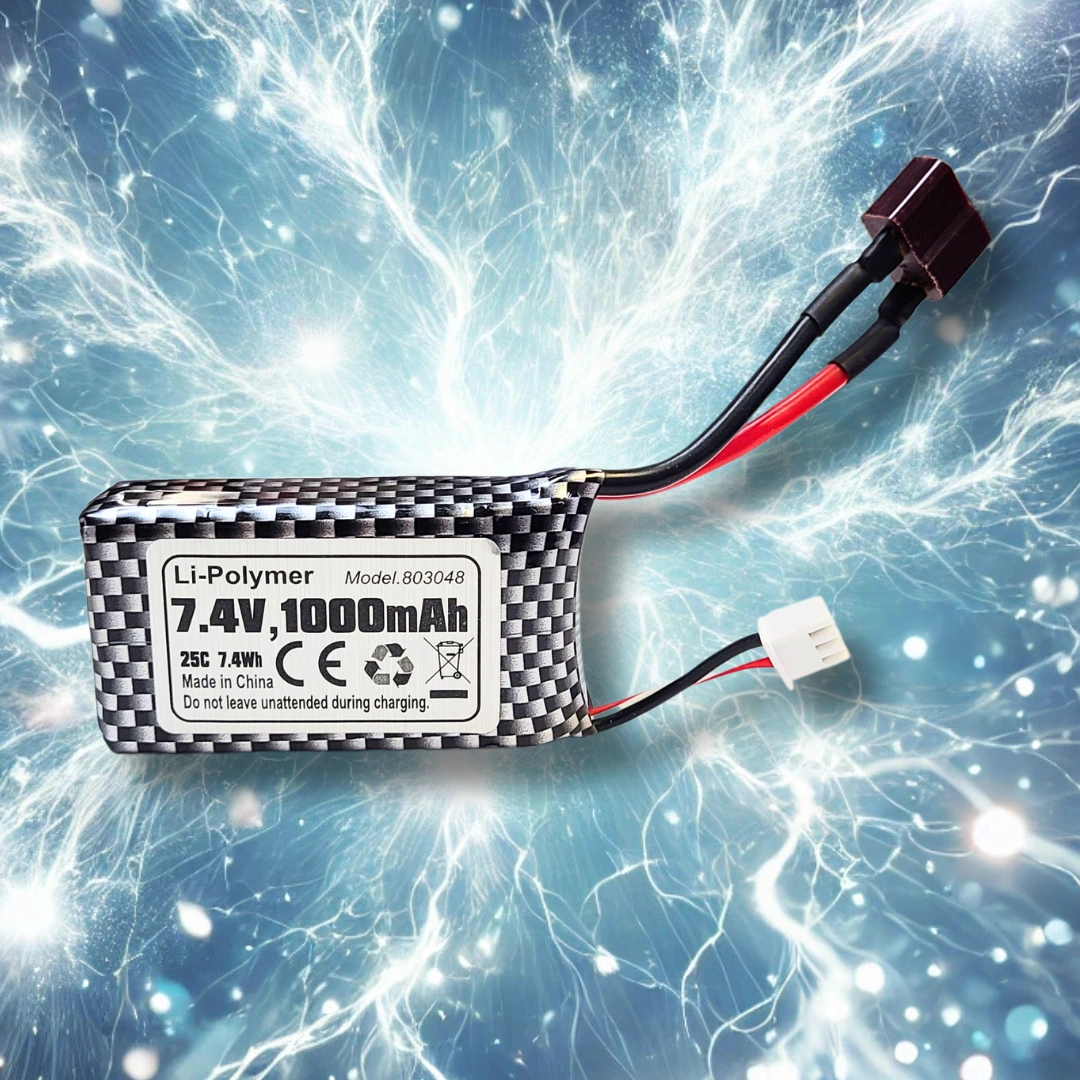

| Battery | 1000mAh 25C Lipo 2S 7.4V (Included) |
| ESC | 25A Integrated ESC/Receiver |
| Servo | 3 Wire Servo |
| Motor | 2435 3900KV Brushless Motor (Brushless Model) / Brushed Motor (Brushed Model) |
| Wheel Hub | 12mm Hex |
| Wheel Dimensions | 3.1 x 1.6” (HxW) |
| Transmitter Range | Approximately 100M |
| Charger | USB Charger (via Balance Leads) |
| Charge Time | 3-4 Hours |
| Runtime | 10-20 Minutes |
Packing List:
| Item | Details |

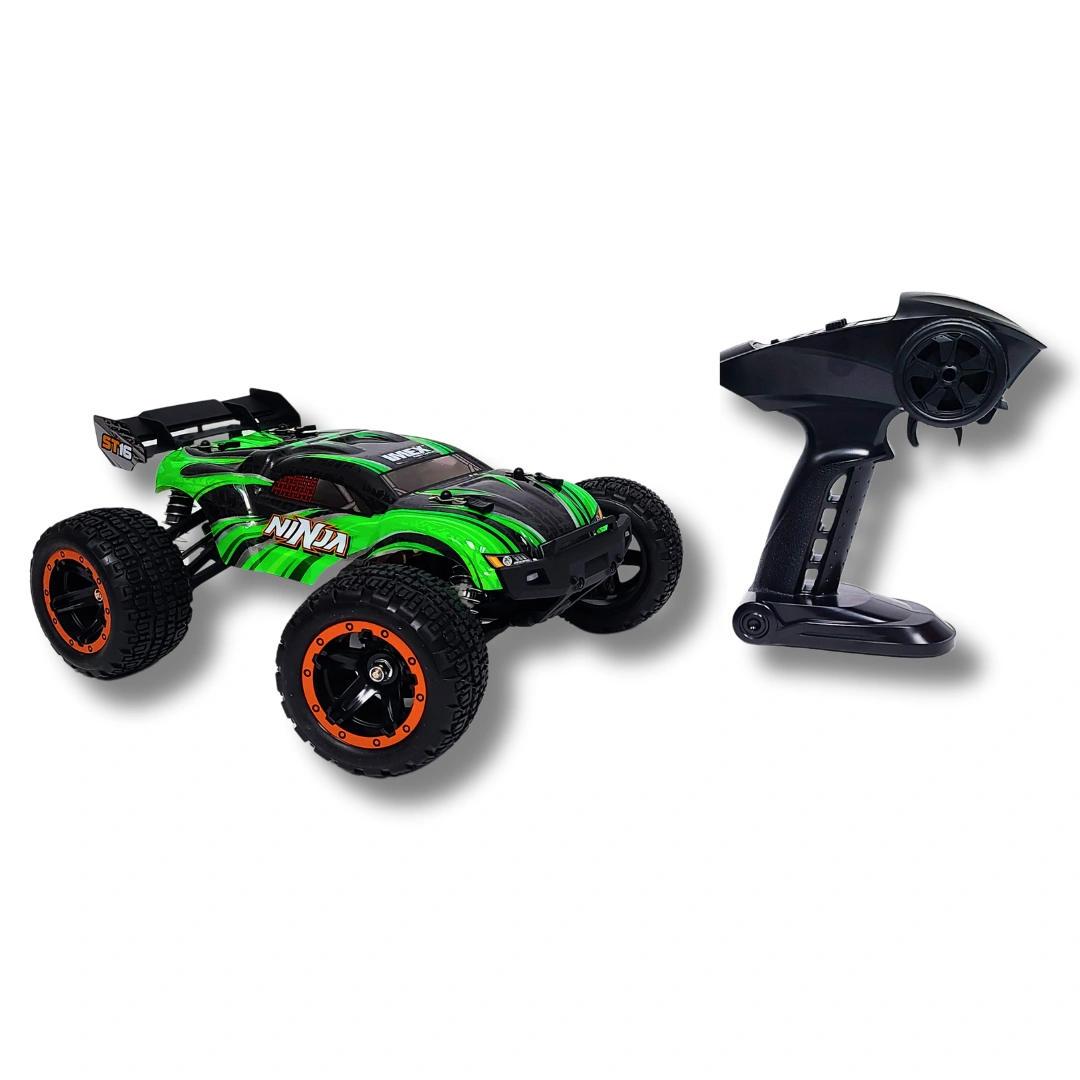

| X1 | Ninja RC Truggy |

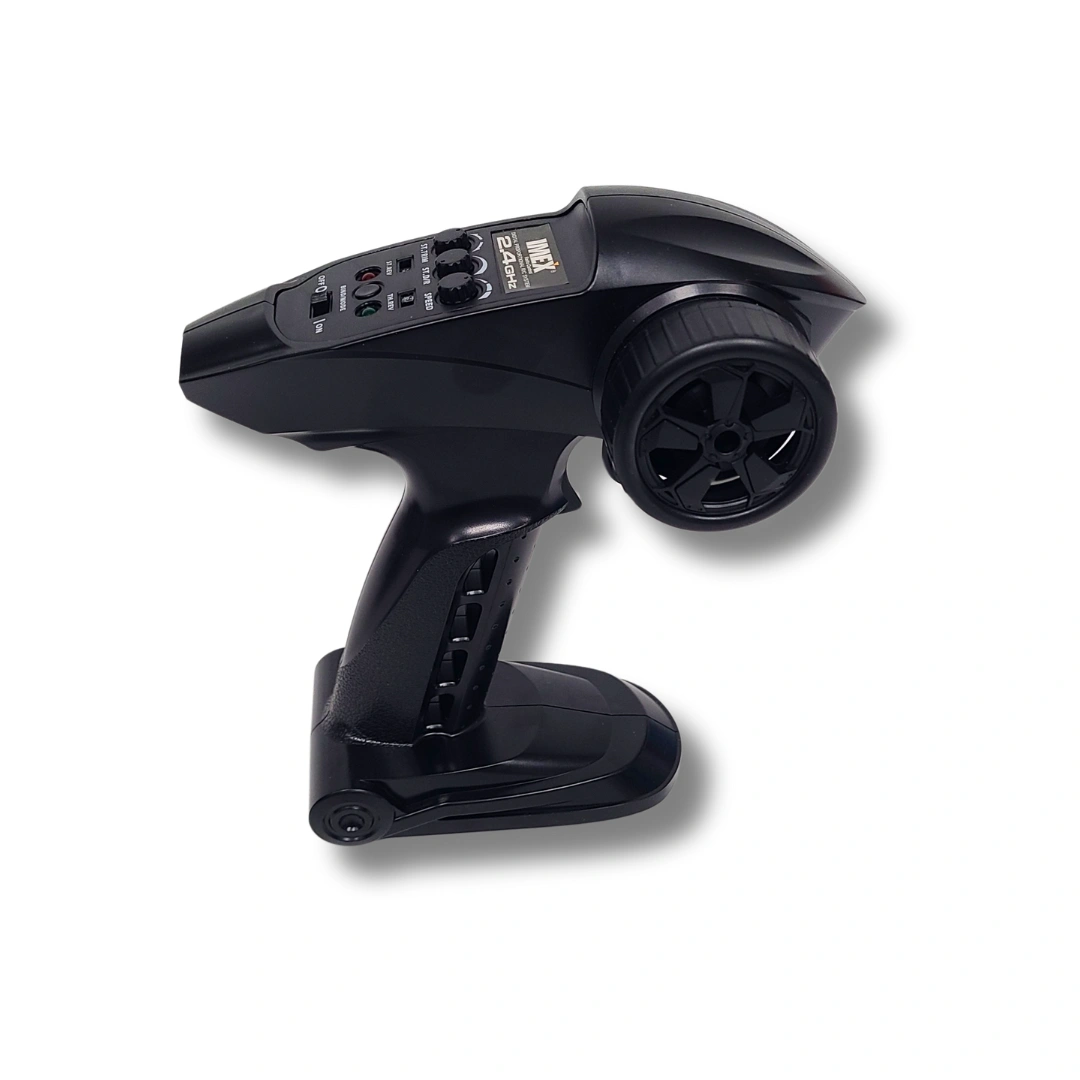

| X1 | 2.4GHz Transmitter |
| X1 | USB Charging Cable |
| X1 | Decal Sheet |
| X1 | Manual |
Upgrade Parts for the IMEX Ninja:
Want to enhance your Ninja’s performance? Check out these upgrade parts! These work for both models, but some are already included in the brushless version.
| Part Number | Description | Link | Included in Brushless |
| IMX16907 | Aluminum-Capped Oil-Filled Shocks | View Product | No |
| IMX16908 | Upgraded Driveshaft and Outdrive Cups | View Product | Yes |
| IMX16909 | Metal Spur Gear | View Product | No |
| IMX16910 | Machined Metal Diff Gears + Diff Pinions | View Product | No |
| IMX16912 | Metal Front CVD Shafts, Pins, and Locknuts (M4) | View Product | No |
| IMX16913 | Metal Rear Dogbones | View Product | Yes |
| IMX16748 | Wheelie Bar | View Product | Yes |
